| 產品介紹 |
| |
| 安裝及外型尺寸 |

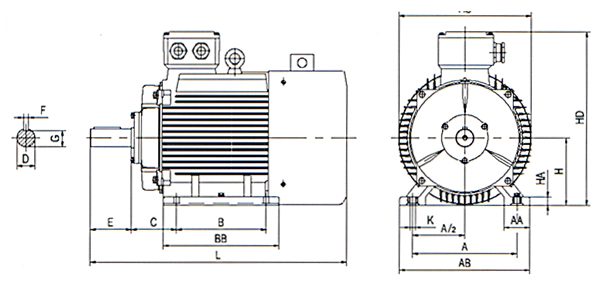

| B3安裝、機座帶底腳端蓋無凸緣 |
 |
| |
|
機座號
|
安裝尺寸
|
外形尺寸
|
|
A
|
A/2
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
AA
|
AB
|
AC
|
BB
|
HA
|
HD
|
L
|
|
112M
|
190
|
95
|
140
|
70
|
28
|
60
|
8
|
24
|
112
|
0
-0.5
|
12
|
50
|
245
|
240
|
180
|
15
|
300
|
520
|
|
132S
|
216
|
108
|
140
|
89
|
38
|
80
|
10
|
33
|
132
|
55
|
280
|
275
|
200
|
18
|
345
|
580
|
|
132M
|
178
|
238
|
620
|
|
160M
|
254
|
127
|
210
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
65
|
330
|
320
|
270
|
20
|
420
|
730
|
|
160L
|
254
|
314
|
785
|
|
180M
|
279
|
139.5
|
241
|
121
|
48
|
14
|
42.5
|
180
|
70
|
355
|
360
|
311
|
22
|
465
|
830
|
|
180L
|
279
|
349
|
870
|
|
200L
|
318
|
159
|
305
|
133
|
55
|
16
|
49
|
200
|
19
|
70
|
395
|
400
|
370
|
25
|
515
|
910
|
|
225S
|
356
|
178
|
286
|
149
|
60
|
140
|
18
|
53
|
225
|
75
|
435
|
460
|
370
|
28
|
555
|
950
|
|
225M
|
311
|
395
|
980
|
|
250M
|
406
|
203
|
349
|
168
|
65
|
58
|
250
|
24
|
85
|
490
|
510
|
455
|
33
|
615
|
1060
|
|
280S
|
457
|
228.5
|
368
|
190
|
75
|
20
|
67.5
|
280
|
0
-1.0
|
90
|
550
|
580
|
520
|
38
|
680
|
1120
|
|
280M
|
419
|
560
|
1200
|
|
315S
|
508
|
254
|
406
|
216
|
80
|
170
|
22
|
71
|
315
|
28
|
120
|
630
|
645
|
600
|
45
|
865
|
1350
|
|
315M
|
457
|
650
|
1400
|
|
315L
|
508
|
716
|
1490
|
|   |
|
|
